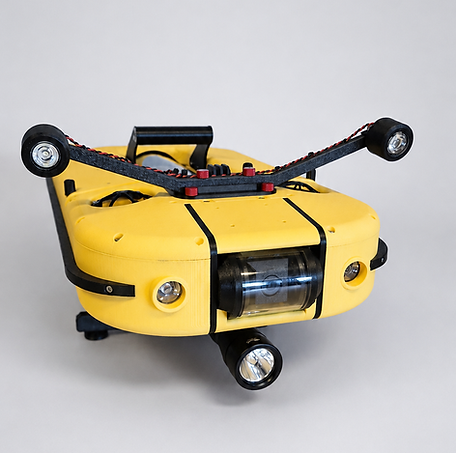

T.R.I.T.O.N. ROV

(Tactical Remote Inspection & Observation Navigator)

Development Status

The T.R.I.T.O.N. ROV is currently in active development and field testing. Specifications, features, and performance data shown on this page represent the latest prototype configuration and may be refined as development progresses.

​

Overview

The T.R.I.T.O.N. ROV is a compact freshwater inspection vehicle designed for underwater exploration, inspection, monitoring, and recovery operations in lakes, canals, rivers, reservoirs, ponds, and other inland waterways.

Engineered for portability, reliability, and ease of operation, the system provides real-time HD video, precision maneuverability, onboard measurement capabilities, and modular payload options in a compact deployment package.

​

Key Features

High-Definition Underwater Vision

1080P HD Camera System

Provides real-time high-definition video for underwater inspections and exploration.

Designed to deliver clear visual feedback during inspection missions in freshwater environments.

​

Integrated LED Illumination

Built-in high-power LED lighting improves visibility in low-light and murky water conditions.

Ideal for inspections beneath docks, boats, bridges, and underwater structures.

​

Laser Measurement System

Integrated dual-laser reference system enables underwater dimensional estimation.

Allows operators to determine object size and scale during inspection activities.

​

Performance & Mobility

5-Thruster Propulsion System

The T.R.I.T.O.N. utilizes five independently controlled thrusters to provide exceptional maneuverability and precise vehicle positioning.

This configuration enables smooth navigation through confined spaces and around submerged obstacles.

​

Intelligent Navigation & Stability


Automatic Depth Hold

Maintains a constant underwater depth without continuous operator input.

Allows the pilot to focus on inspection tasks while the vehicle automatically compensates for depth variations.

Ideal for detailed inspections, measurements, and stationary observation.


Stabilize Control Mode

Advanced stabilization algorithms automatically assist in maintaining vehicle attitude and control.

Provides smoother operation and improved maneuverability in currents and confined environments.

Reduces operator workload during extended missions.


Automatic Surface Function

With a single command, the T.R.I.T.O.N. can automatically return to the water surface.

Provides an additional layer of operational safety and simplifies vehicle recovery.

Particularly useful during emergency situations or loss of visual reference.

​

Compact Underwater Platform

The compact design allows operation in locations where larger ROVs cannot easily be deployed.

Suitable for inspections in narrow waterways, culverts, docks, and restricted-access environments.

​

100 Meter Tether System

Supplied with a durable tether management reel for deployment and recovery.

Provides reliable communication and vehicle control up to 100 meters from the operator.

​

Power System

Internal Battery Operation

Powered by an integrated onboard battery system.

Provides up to 2 hours of operational runtime under typical operating conditions.

The self-contained design eliminates the need for external surface power supplies.

​

Control System

Integrated Display Controller

The vehicle is controlled using a compact handheld controller equipped with an integrated display.

Operators receive real-time video feedback while maintaining precise vehicle control.

Designed for rapid deployment from shorelines, docks, pontoons, and small vessels.

​

Modular Payload Capability

Expandable Mission Platform

The T.R.I.T.O.N. is designed with future expansion in mind.

Optional payloads and accessories may include:

• GoPro camera mounting system

• Additional high-power lighting

• Environmental sensors

• Custom inspection tools

• Specialized mission equipment


Portability & Deployment

Compact Field System

The complete system is designed for easy transportation and rapid deployment.

The lightweight configuration allows a single operator to quickly deploy the ROV in the field.

​

Intended Applications

Freshwater Infrastructure Inspections

• Bridges

• Culverts

• Flood control systems

• Retaining walls

• Water management infrastructure


Environmental Monitoring

• Lakes

• Rivers

• Reservoirs

• Ponds

• Canals


Search & Recovery Operations

• Object location

• Equipment recovery

• Evidence support operations


Marine & Recreational Inspections

• Boat hull inspections

• Mooring inspections

• Dock inspections

• Slipway inspections


Research & Exploration

• Freshwater ecosystem observation

• Educational projects

• Underwater surveys

• Remote exploration missions


Designed For Freshwater Operations

The T.R.I.T.O.N. ROV is primarily designed and optimized for freshwater environments. Operation in saltwater environments may require additional maintenance procedures and corrosion protection measures to ensure long-term reliability.
